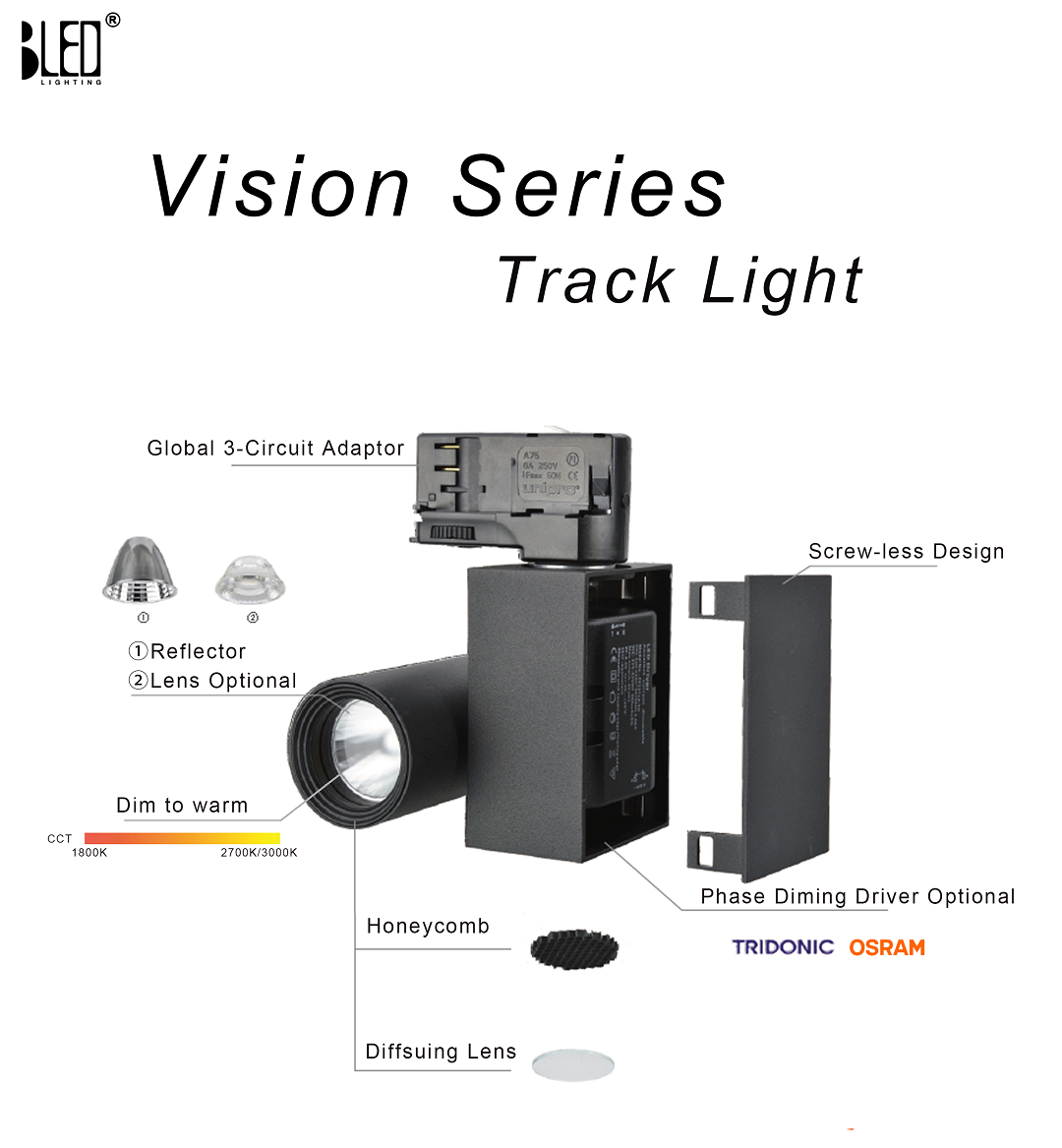

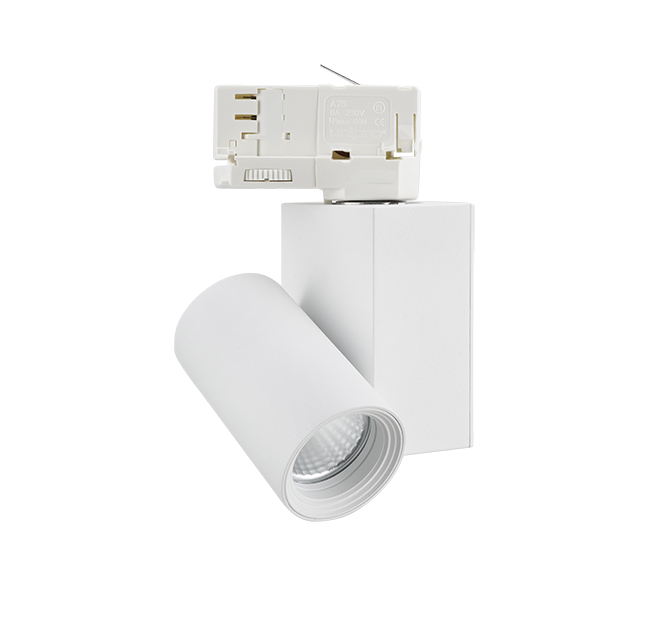

LED track light-Dim to warm track light
Technical Specs
Product code BLT201T-12



LED & Optics		 LED brand & model Luminus CXM-7
CCT 2700K/3000K/4000K
CRI Ra>90
Voltage (VF) 36V
Beam angle 15° / 24° / 36°






Electrical

Parameter

 System Power 12W
Driver brand & model Tridonic LC 10/250/40 fixC R ADV
Location of driver In driver box
Input voltage AC220-240V,  50/60Hz
Output voltage 21-40V
Output current 250mA
Dimming method Triac / DALI / 0-10V
Power factor 0.9
Photometry Luminous flux in 3000K 707lm





Luminaire

Structure

 Adaptor 1 circuit / 3 circuit
Material Aluminum
Color Sandblasted white/ sandblasted black
IP rate IP20
Packing  24PCS/CTN
Carton size 42.5*40*33cm
Net weight 0.35kg
Gross weight 12kg





LED track light-Dim to warm track light
* Available for dim to warm.
* 2 sizes of different lumen for various applications.
* Using high quality adaptor of brand such as Global Unipro Powergear
* Anti-glare design optional with honey comb and lens

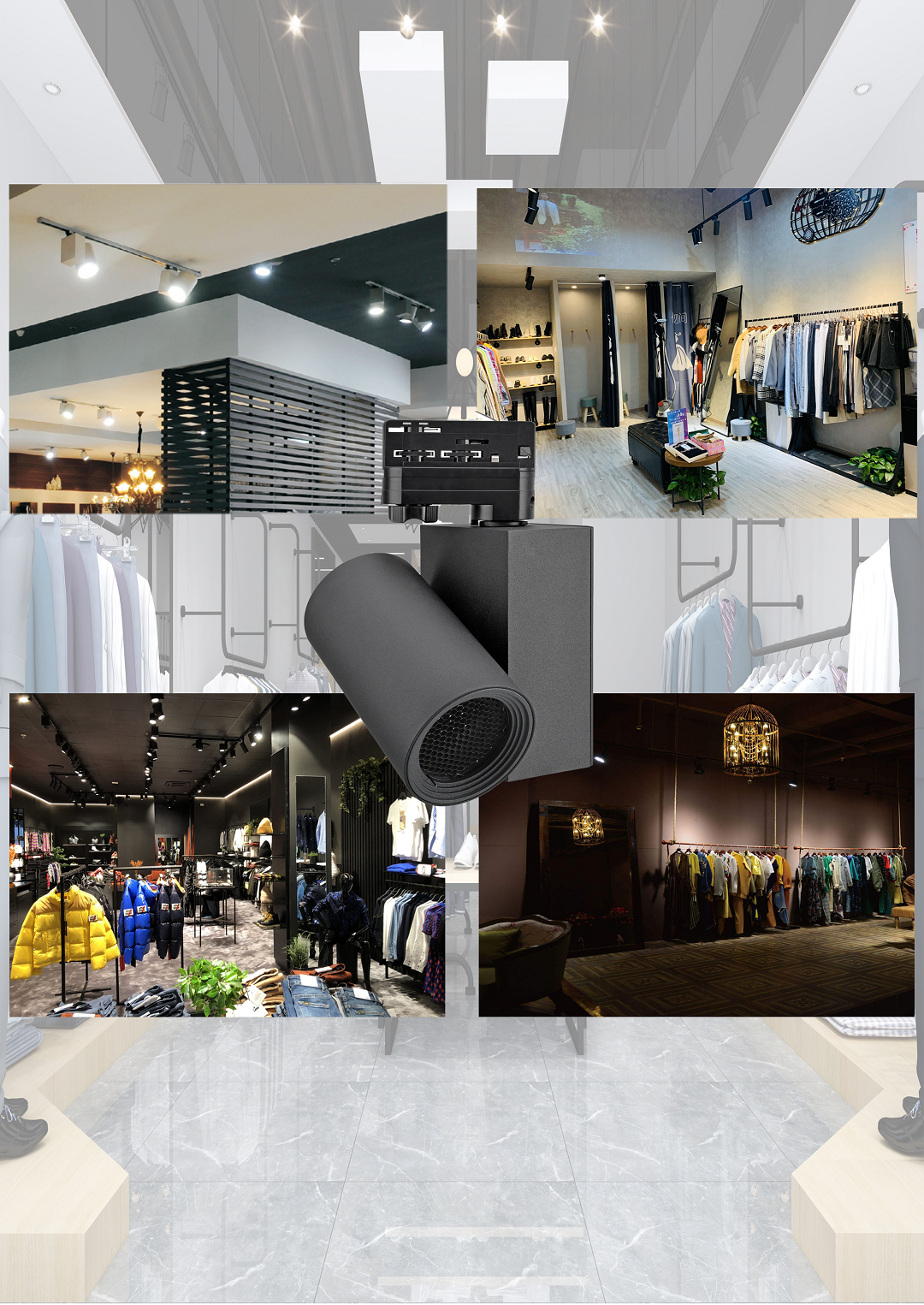

* Suitable for clothing shops boutique coffee shops, etc
